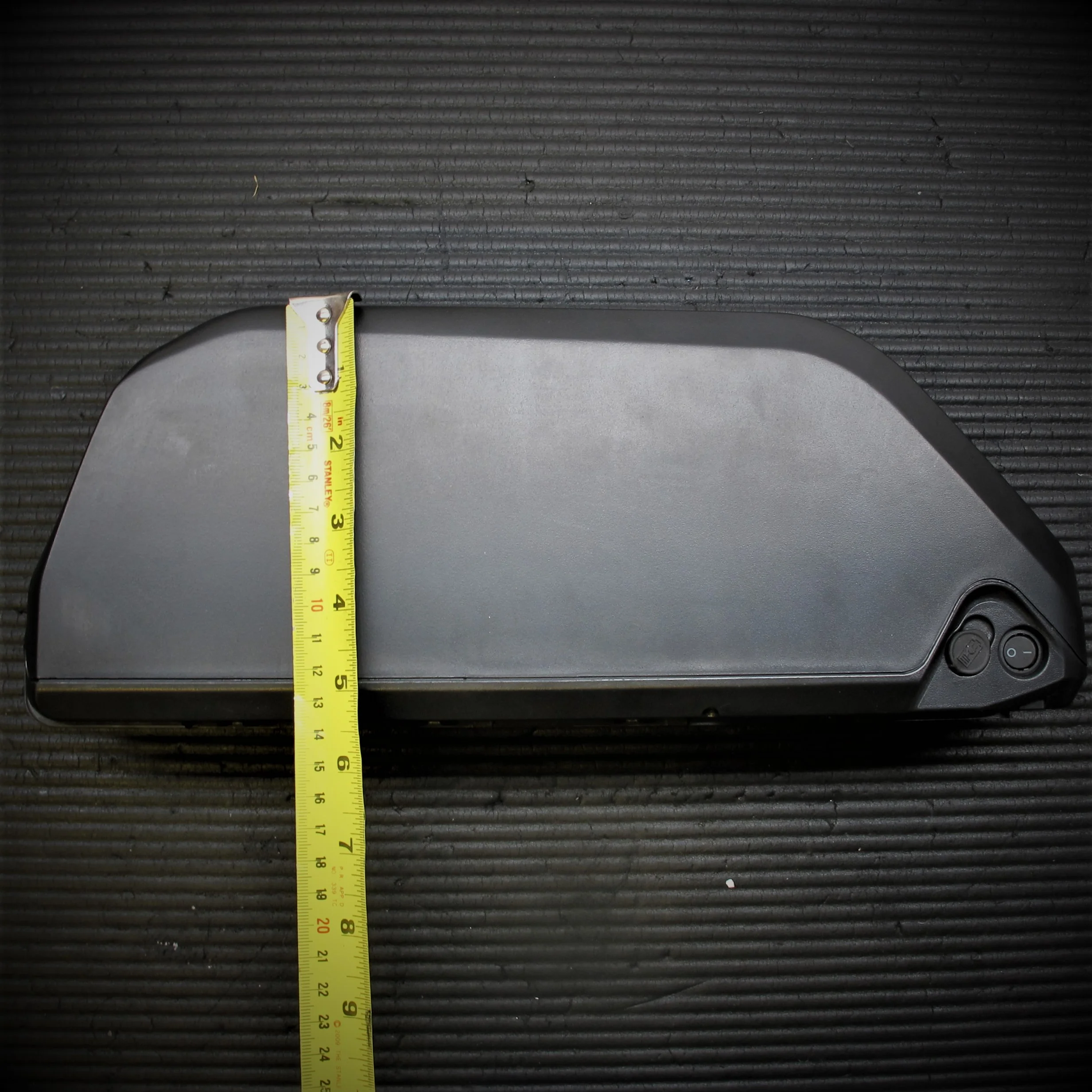

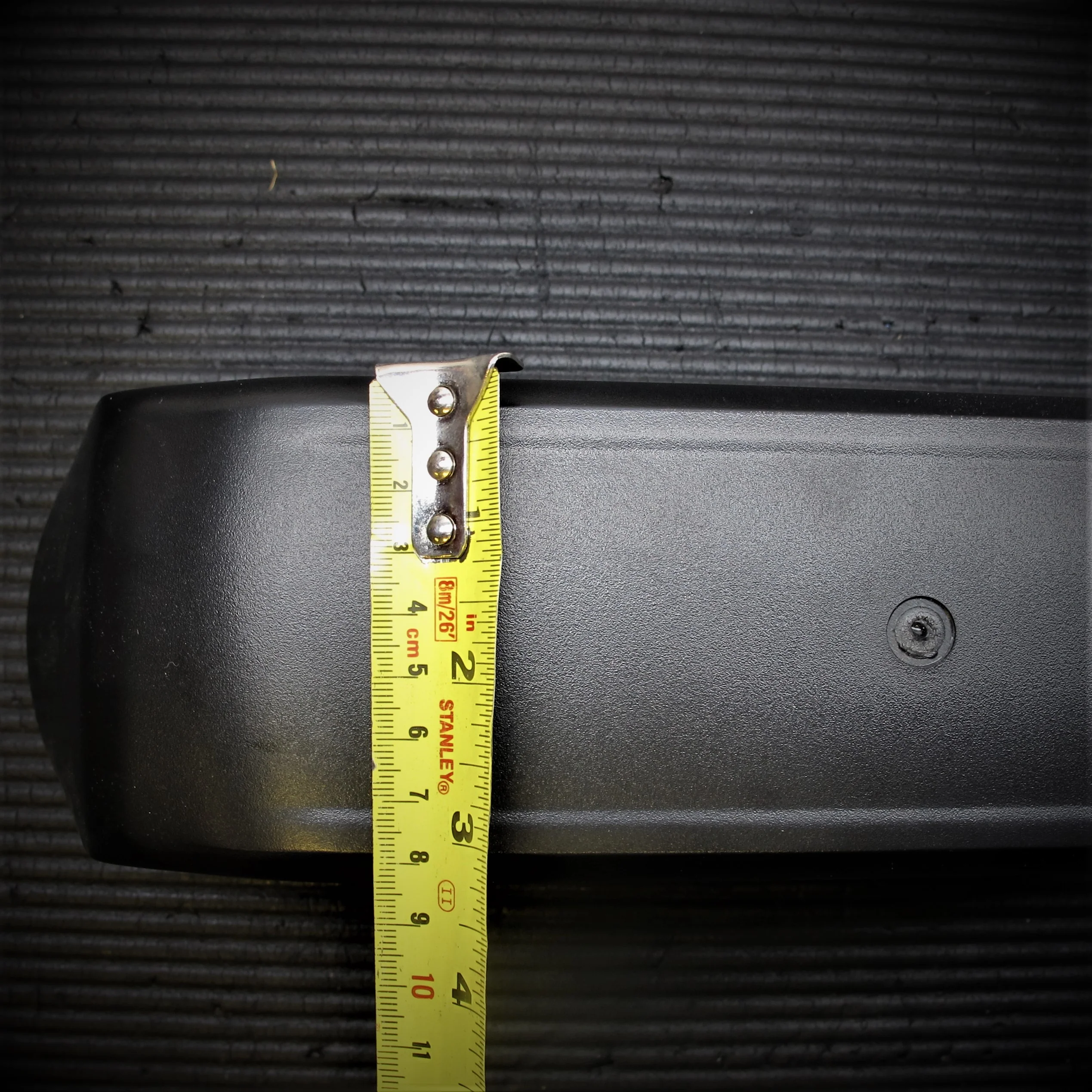

Reention DP-9 Battery Case

Able to fit 91 Cells + BMS on top

Perfect for 36 Volt, 48 Volt, or 52, 60V, and 72 Volt Batteries
60V (96 cells) is possible when glued together 16S6P

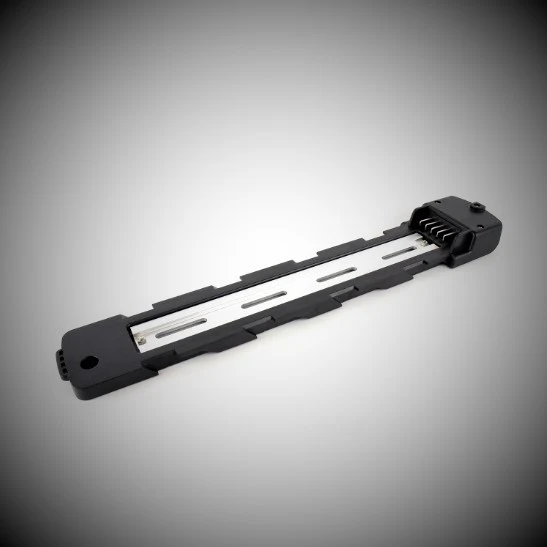

HAS LED Indicator, Keyed Lock, Removable
Mounts onto the DownTube of most bikes (waterbottle mount)

Capable of

36V
10S9P = 36V27ah (using 3000mah cells)

10S9P = 36V31.5ah (using 3500mah cells)

48V
13S7P = 48V21ah (using 3000mah cells)

13S7P = 48V24.5ah (using 3500mah cells)

52V
14S6P = 52V18ah (using 3000mah cells)

14S6P = 52V21ah (using 3500mah cells)

60V

16S5P = 60V15ah (using 3000mah cells)

16S5P = 60V17.5ah (using 3500mah cells)

(Can also glue 16S6P together, for advanced builds)

72V
20S4P = 72V12ah (using 3000mah cells)

20S4P = 72V14ah (using 3500mah cells)

You can also get creative, we have made a 16S6P (96 cells), the BMS had to be placed alone the side of the pack, but it works!
