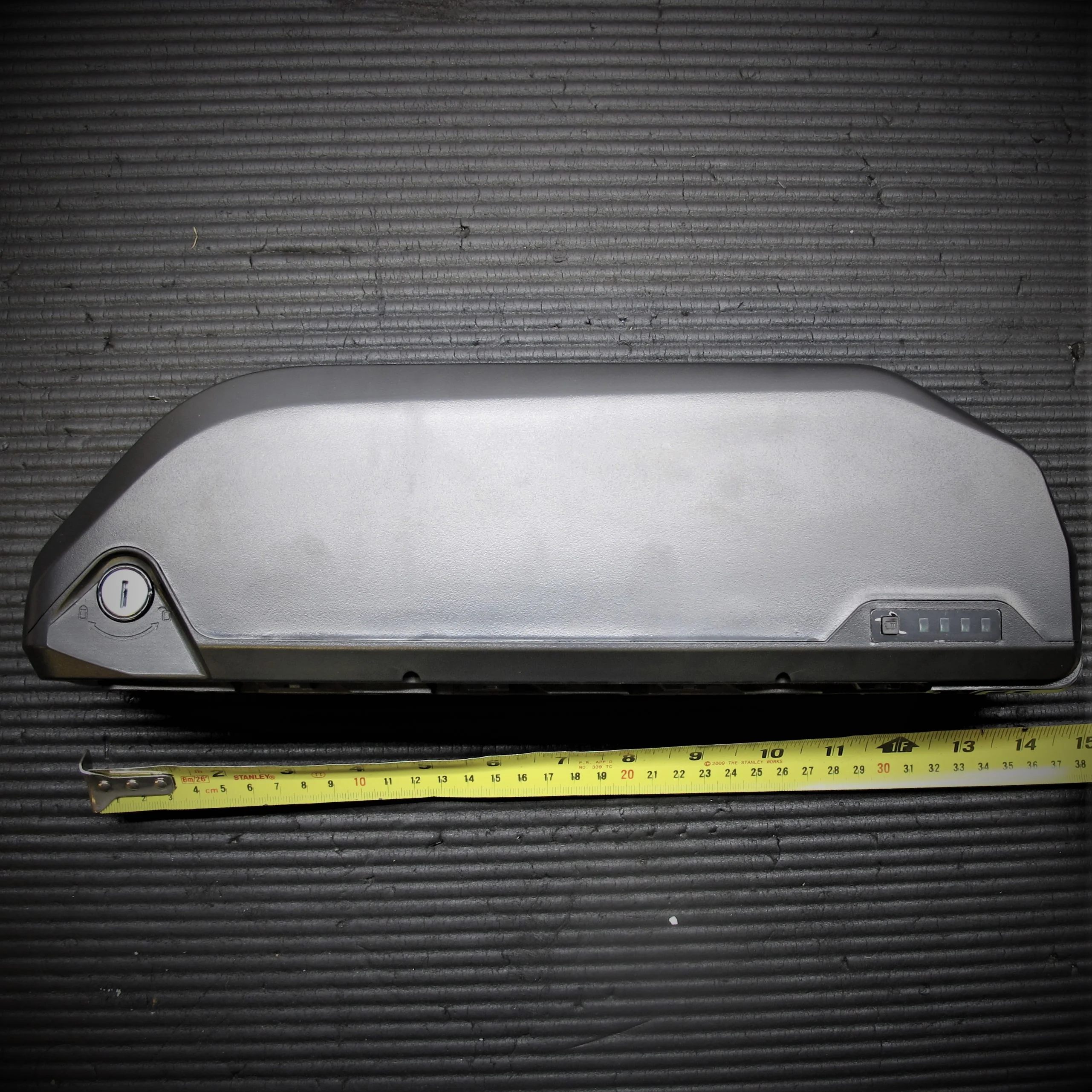

Removable Downtube Battery Pack

Cells are used are the following;

ECO - Economical (Sanyo UR18650ZAT)
HD - High Discharge (Ampace JP30)
HR - High Range  (Samsung 35E)


Cutout Available (check fitment)
https://drive.google.com/file/d/1DG9c4uO0zMX-_75t0fY6QD9476b-KK9G/view?usp=sharing
(Make sure to print "Actual Size" in PDF Settings)

These packs are output about 2000W max. Recommended for 750W - 1500W applications.

Our batteries are built in house!
That means you can CUSTOMIZE
1) Connector
2) Cable Length

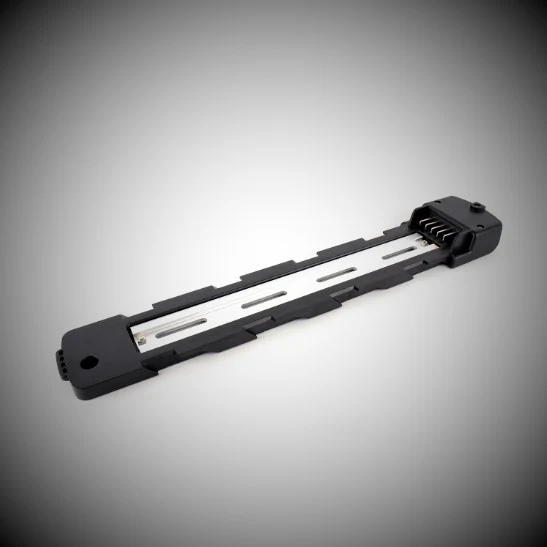

Base is included, this base uses a 5 pin connector (see photo). It is the same base as used on the larger DP-9 and DP-21700-7 cases.

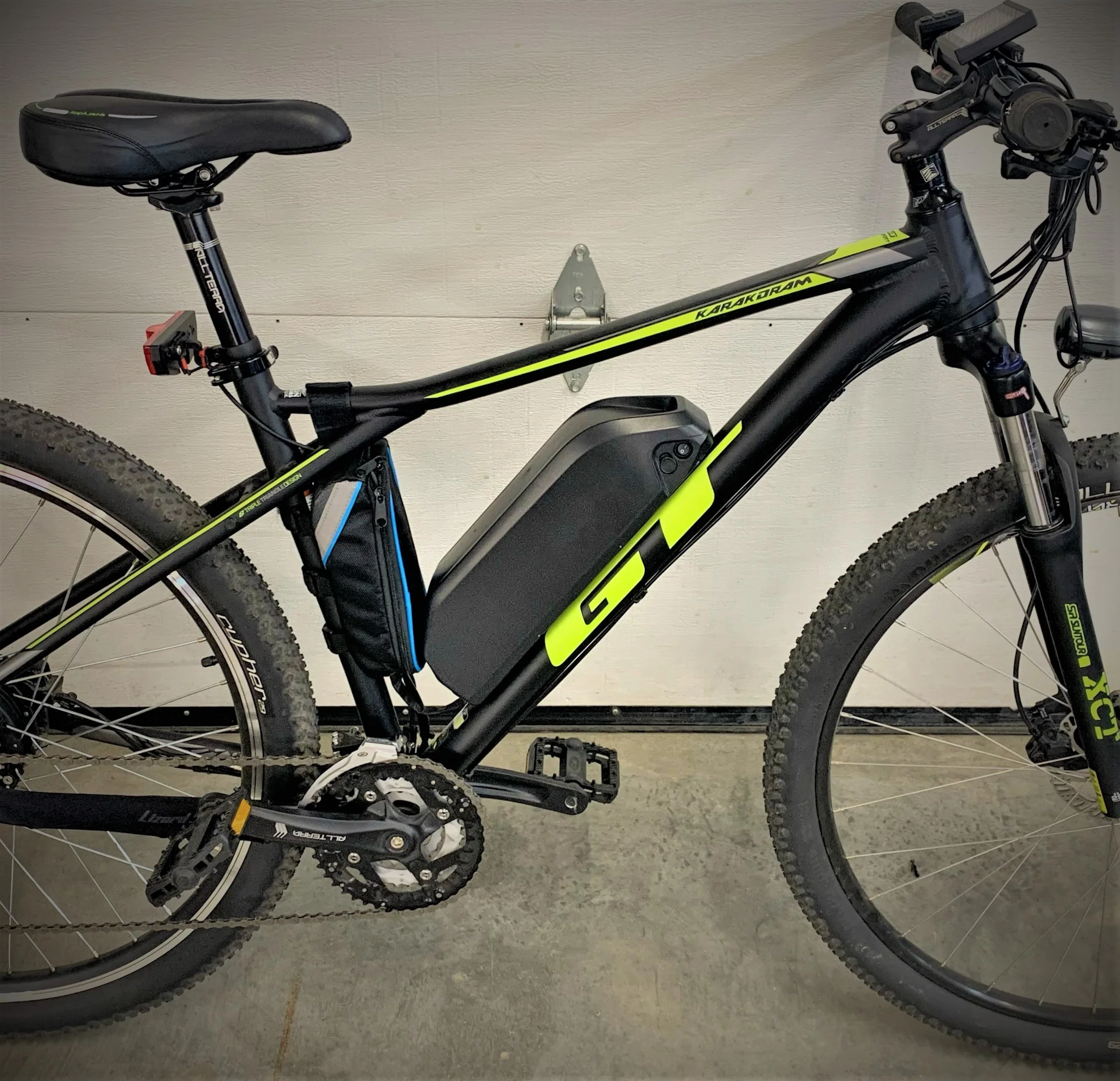

These battery packs are able to mount to your existing water bottle holes on your frame.

The Reention DP6 Battery case is very similar to the Hailong battery cases except much more durable and offers 4 mounting points on the bottom compared to the commonly found 2 mounting points.

These feature a quick release system with a locking key so that you can quickly and easily pop off your battery for security reasons / to charge / etc.

Also, if your bike has a round tube, ask us about 3D Printing an adapter plate that can wrap around your tube and provide a flat surface for the battery to sit securely. No added charge with our battery packs!

Each battery comes with a BMS rated for 40A , a 3-Amp charger with built in fan, and 2 mounting bolts to go into your existing water bottle holders.

Questions?
Email us at [email protected]
