Small and compact downtube battery pack

TEST FITMENT? CUTOUT AVAILABLE BELOW
https://drive.google.com/file/d/1gBFdza7bU1seyQAZfxIj9vZX_Jaarjl_/view?usp=sharing

Excellent for tight frames!

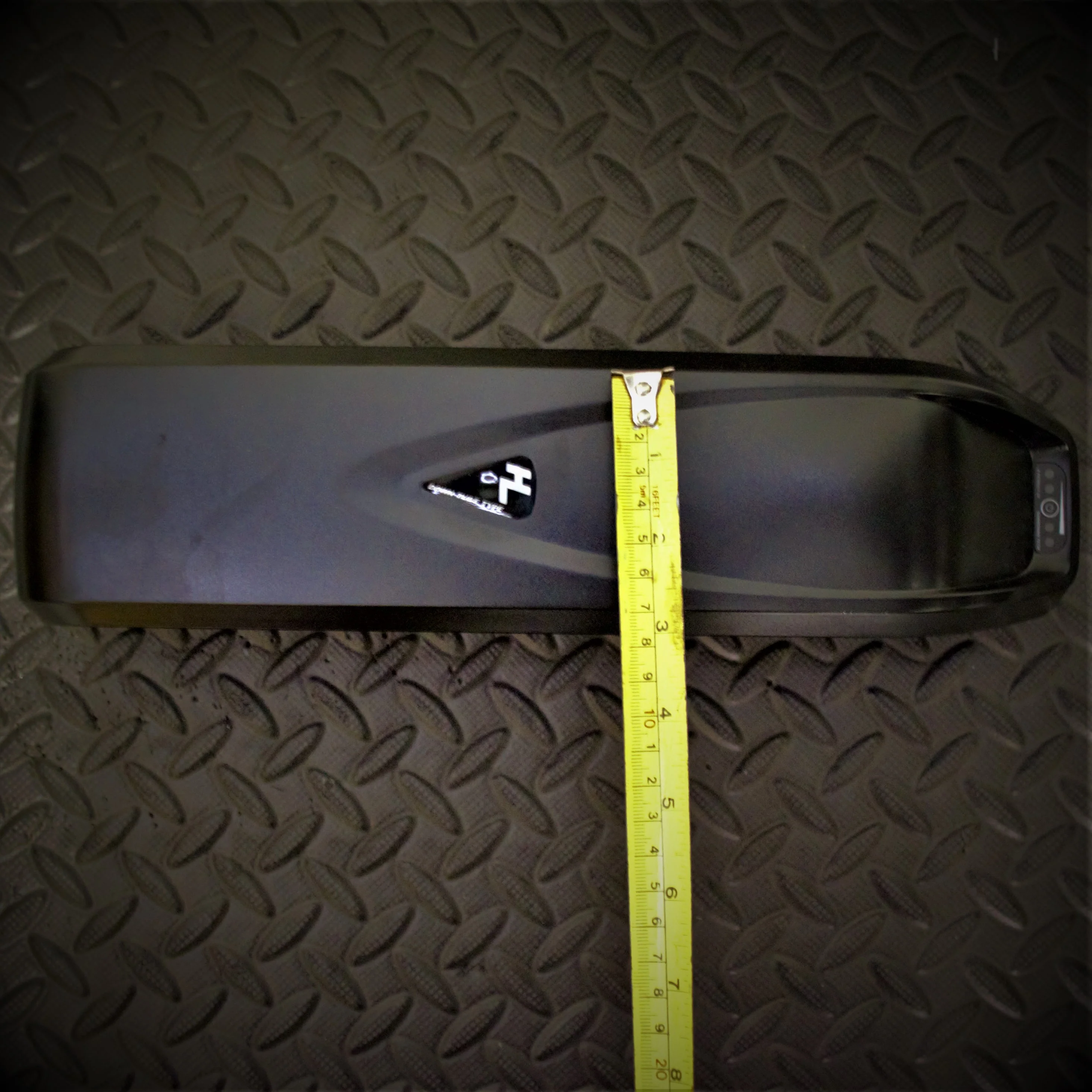

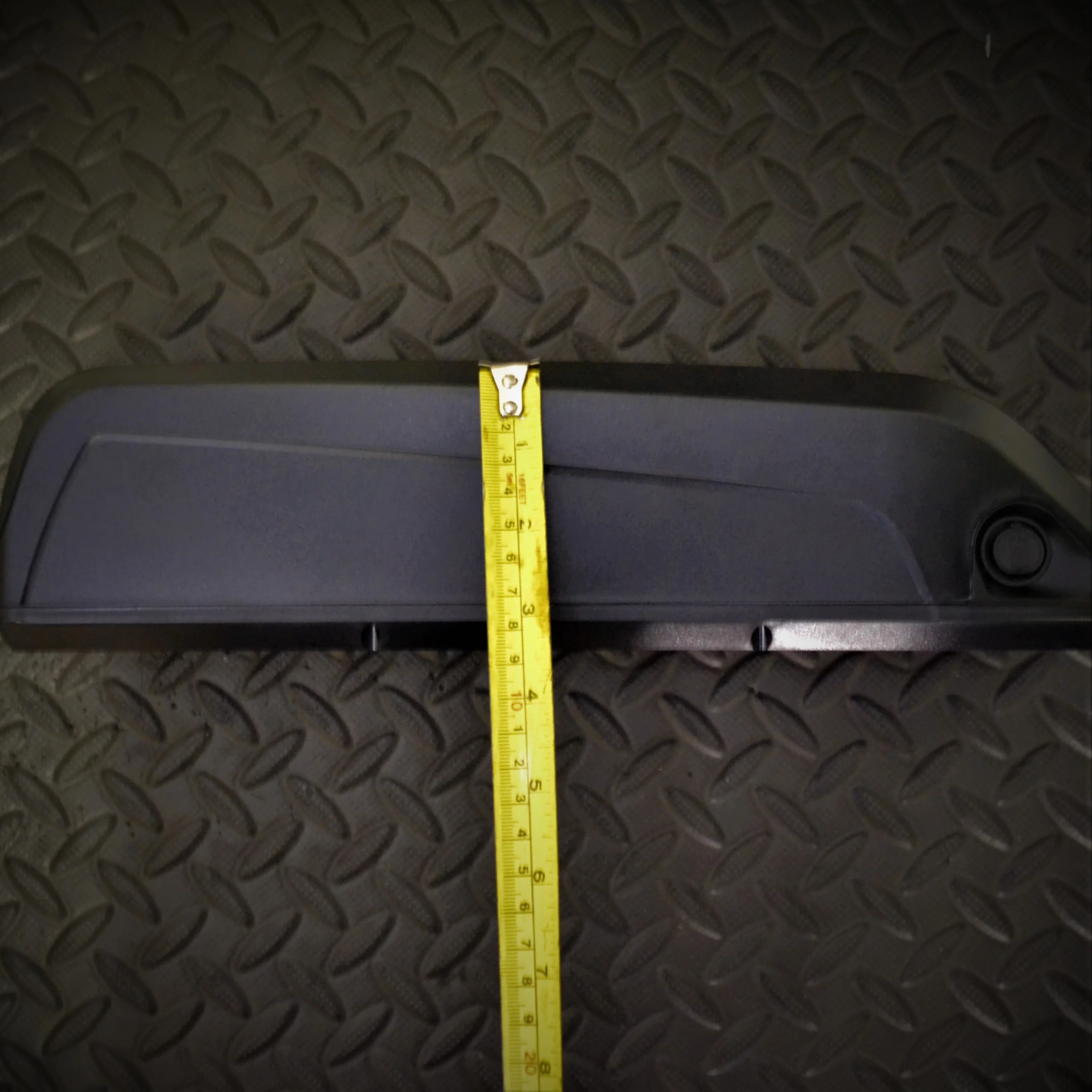

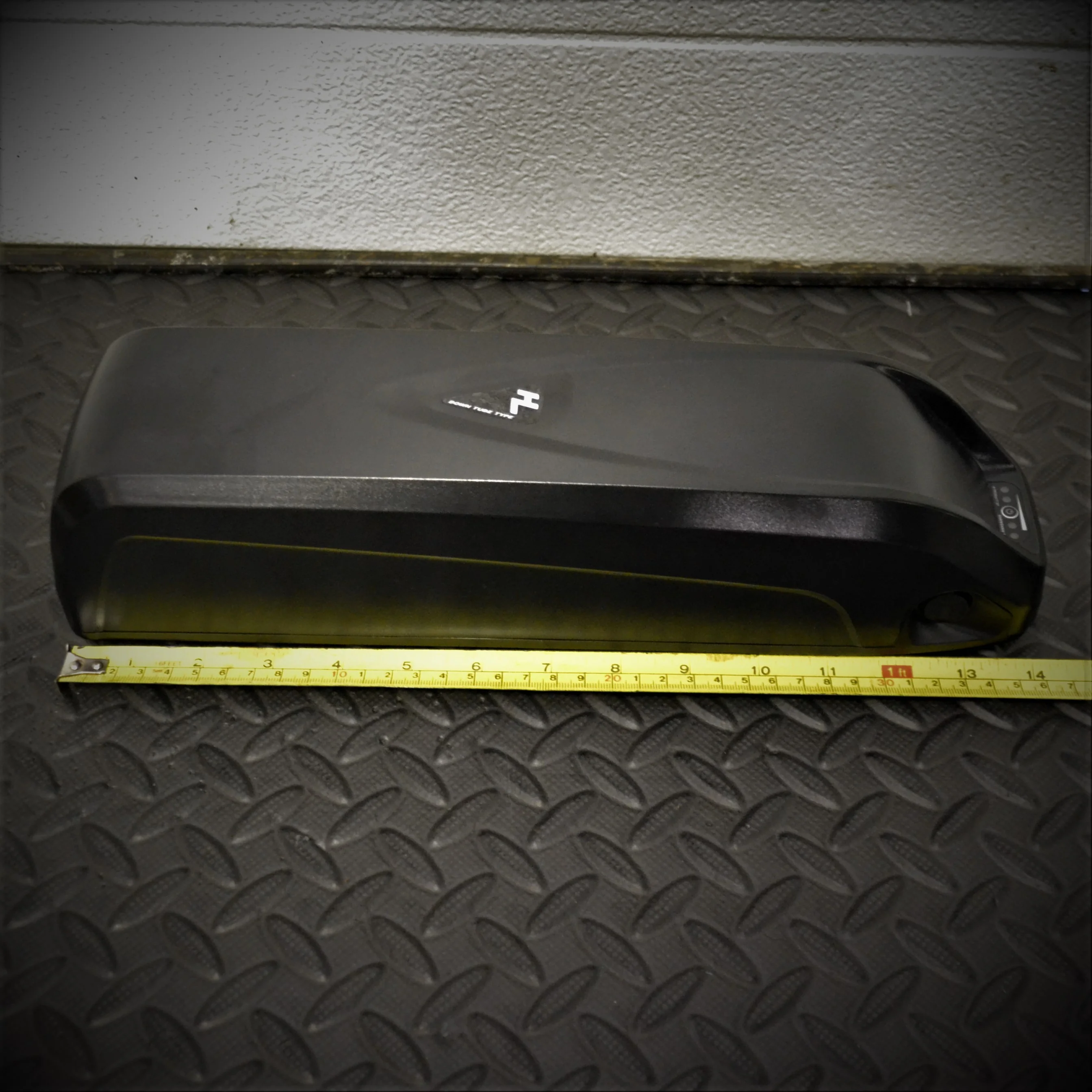

See pictures below for dimensions

This pack uses the new Hailong G56 case, which now has the 4 mounting locations on the base rail, a vast improvement over the previous 2.

A very sturdy design, features a keyed lock for quick removal, battery indicator, and standard charge port.

Our packs are built using Grade A Samsung 18650 Cells (Samsung 33G) or Samsung 35E (Highest available capacity for Lithium Ion Cells)

Battery Specs:

Cells : Sanyo UR18650VAT 3000mah (ECO) or Samsung 35E 3500mah (Range)

BMS : Yes, DALY 30A continuous, 50A cutoff with balance

Charger : Yes, 3A (48V/52V) and 4A (36V)
Configuration : 10S5P (36V) 13S4P (48V), 14S4P (52V)

Method of Assembly : Pure Nickel Spotweld

Questions?
E-mail us at [email protected]
